Vegetable & Fruit Processing Equipment for Flour and Breadcrumbs Coating Line

Vegetable & Fruit Processing Equipment & Service Features – Detailed

From Fresh Harvest to Extended Shelf Life
Our equipment is specifically designed for blueberries and similar delicate berries, with the self-developed Blueberry Weighing and Packaging Machine as the core product. It integrates precise weighing, gentle handling, and advanced packaging. Below is a detailed breakdown of each functional stage and equipment performance

Raw Material Pretreatment

 Equipment: Leaves remover and inspection machine
 Technology: The remover machine can remove flowers, leaves and very small fruits through parallel cylindrical conveyor belts, the whole body made of SUS 304 and food-grade PVC. After that, manual visual inspection to pick up bad fruit from good fruit.
Target Produce: blueberries, cherries, cherry potatoes.



Sorting & Sizing

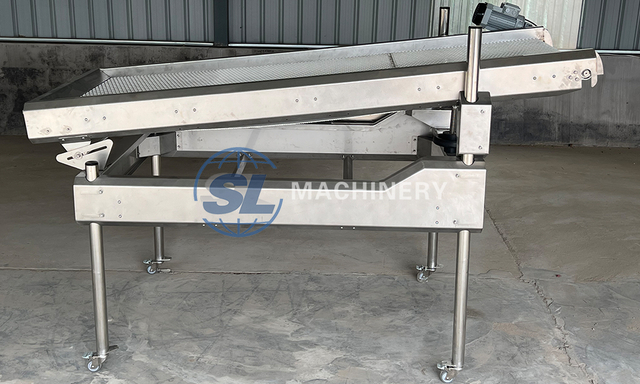

 Equipment: Sorting machine
 Technology: The sorting machine uses the diameter size gap to sort the fresh fruit grade. If the fruit diameter is smaller than the hole on the belt, it will fall into this level of the blanking basket. If the fruit larger than this hole size, then will continue to be transported forward until it falls into the blanking basket smaller than that size to complete the separation.
Capacity: 1 ton/h.
 Target Produce: blueberries, cherries, cherry potatoes.

Packaging

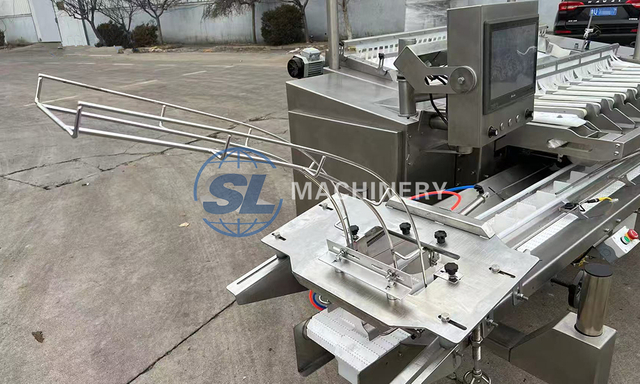

 Equipment: Weighing and packing machine

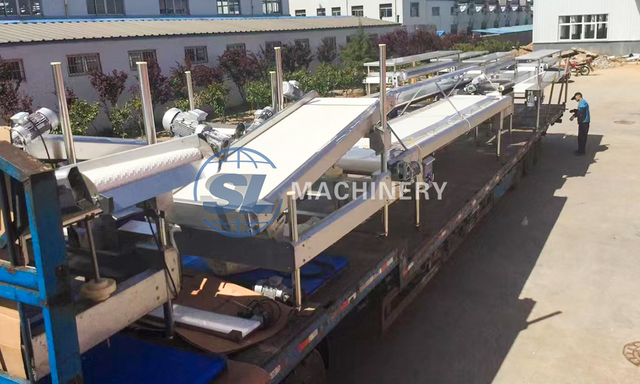

Blueberry Packing Line details: This line is specially designed for delicate berries. It includes:
 Gentle conveyor: A soft-brush and low-height drop design prevents bruising – bruising rate is ≤3% vs. industry average of 8–10%.
 Target Produce: blueberries, cherries, cherry potatoes.



Quality & Innovation Commitment (Detailed)

Patented Blueberry Packing Line

Our self-developed blueberry packing line has been granted utility model patents in China. The key innovations include a soft-touch singulator that aligns berries without compression, a non‑destructive weighing and packing system. Customers have reported a 30% reduction in post‑packaging waste and a 20% premium price due to extended shelf life.

All Stainless Steel, IP69K Rated

All equipment is constructed from stainless steel 304 (or 316L for corrosive environments). Electrical enclosures are rated IP69K, meaning they can withstand high‑pressure, high‑temperature washdowns. This makes the equipment suitable for wet processing areas and easy to sanitize.

Other Quality Features

 Low maintenance: All bearings are sealed and located outside product zones. Belts are modular plastic or silicone, easy to replace.
 Compliance: All equipment meets CE, or EAC standards depending on destination.
 After-sales support: We provide installation, commissioning, operator training, and 24/7 remote assistance. Spare parts are available from our regional warehouses.
