Stainless steel food processing machinery production line in Shanlin factory

loading

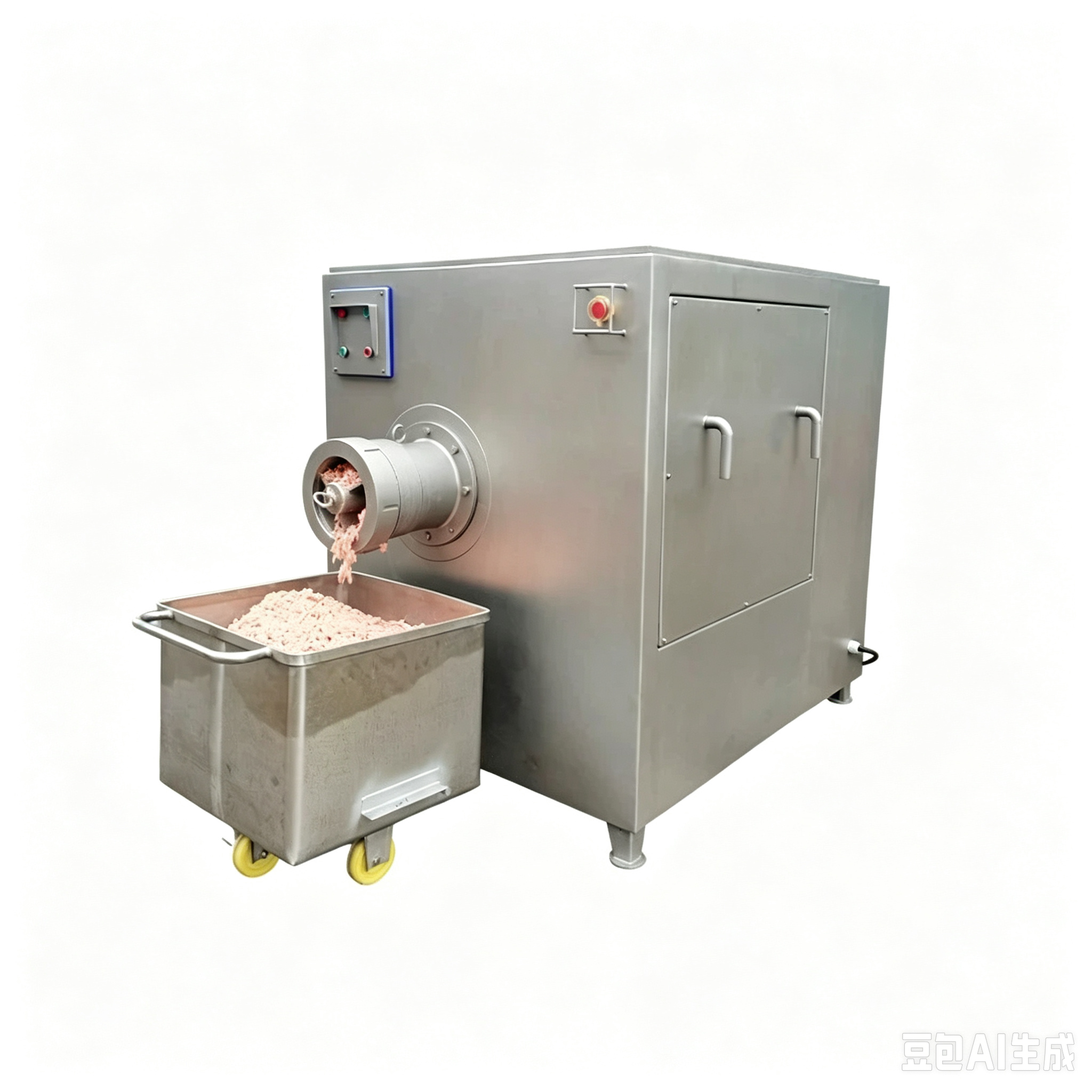

Meat Grinder

Qingdao Shanlin Meat Grinder can grinder fresh meat and frozen meat. Materials in the hopper are pushed to precut-plate by the rotation of screw. The meat is cut to uniform particles through the relative movement between knife and hole-plate caused by rotary screw.

The main body and food area are made of quality stainless steel, reasonable structure, reliable performance and low noises. Different applications are for both fresh and frozen meat. To create an excellent meat cutting result, different hole-plates can be selected according to the various processing requirements.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Features:


Food Safety Assurance

The low temperature rise during processing inhibits bacterial growth, helps preserve freshness, and extends shelf life.


Product Stability

Professional equipment can operate continuously for 24 hours. The minced meat produced has uniform particle size and clear-cut edges, ensuring consistency in the final product.


Strong Adaptability

It can handle frozen meat at –18°C. By changing the grinding plates with different aperture sizes, it can also produce minced meat of varying coarseness—from coarse particles to fine paste—to meet the requirements of a wide range of products, such as sausages and meatballs.


Safe Materials and Easy Cleaning

The body is fully made of SUS304 stainless steel, which complies with hygiene standards. Its smooth and flat surface makes cleaning easy.

User-Friendly Operation

All models are designed with forward and reverse rotation functions to effectively prevent jamming.


Model JR-130 JR-250
Material SUS304 SUS304
Capacity 1-1.5 T/H 3-10 T/H
Meat Temperature 0~-5 ℃ -5~-18 ℃
Total Power 7.5 kW 55 kW
Worm Speed 150 r/min 47 r/min
Bowl Speed 16 r/min 12 r/min
Dimension 1410*710*1130 mm 2280*1210*1800 mm
Total Weight 400 KG 2100 KG
