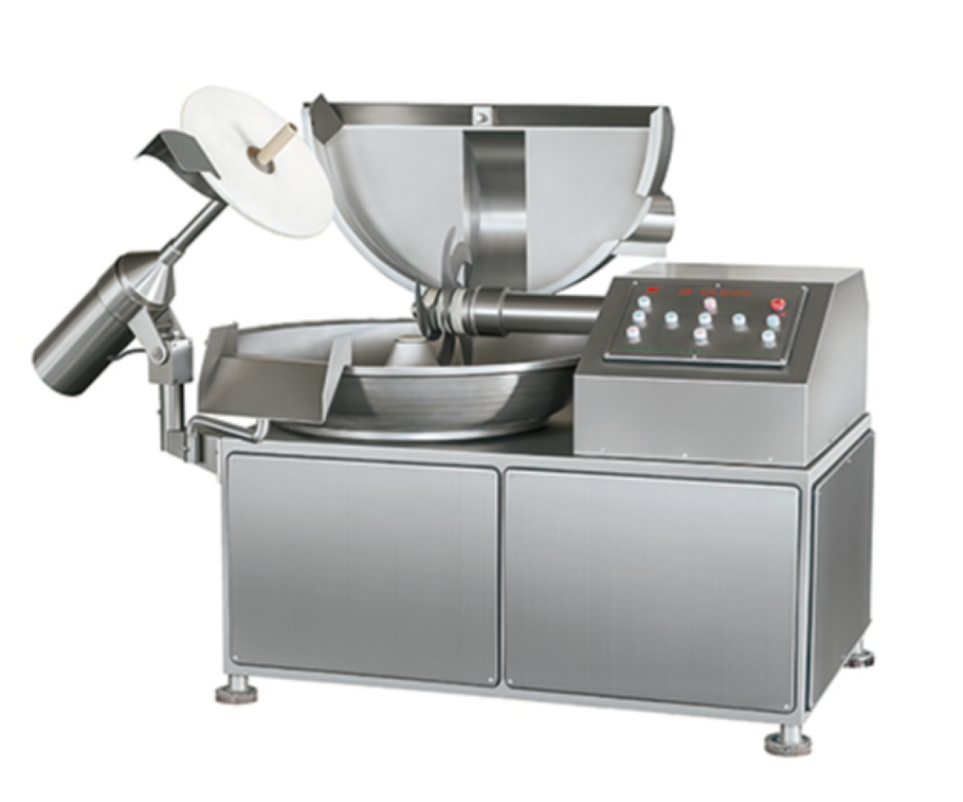

Bowl Cutter Machine

Qingdao Shanlin Machinery Equipment ZB series bowl cutters are key equipment in the production process of meat emulsion products. The high-speed rotating chopping knives can comminute raw meat into a fine emulsion while uniformly mixing in other auxiliary ingredients. They are indispensable meat processing machines for hotels, restaurants, canteens, meat processing plants, and similar establishments. The bowl cutters produced by our company feature well-designed knives speed, bowl speed, clearance between knives and bowl, knife material, and knife edge hardness, along with superior workmanship. These ensure fine comminution of meat materials, minimal temperature rise, and short chopping time, thereby improving the emulsification effect, elasticity, fineness, and yield of meat products.

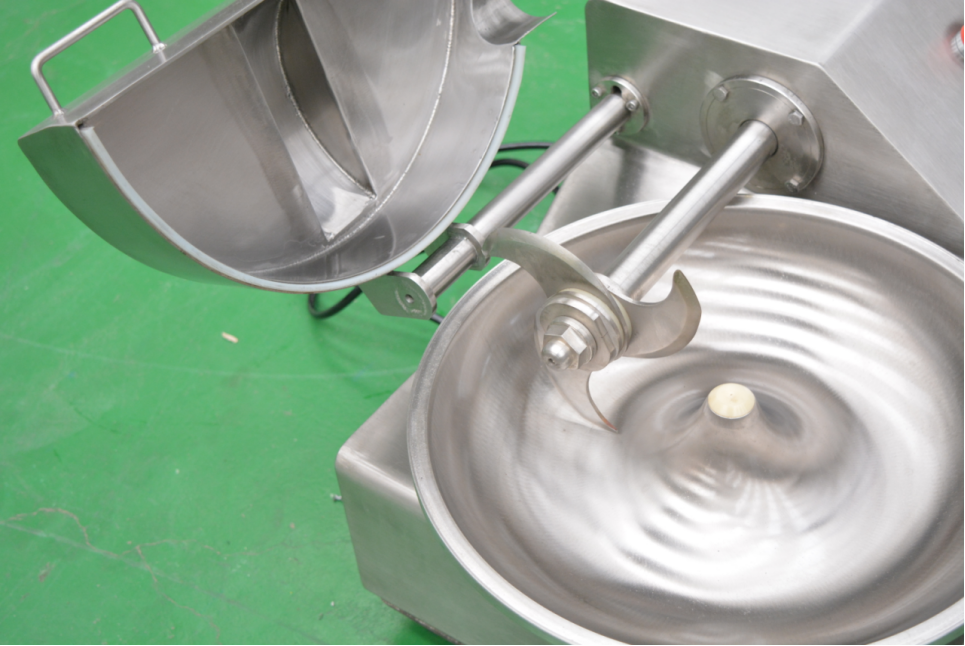

The machine is equipped with a high-dome rotating bowl for material loading and a complete set of high-speed rotating cutting tools. It can chop larger non-frozen meat chunks as well as auxiliary ingredients and additives into meat fillings of varying particle sizes, or into emulsified meat paste with strong binding properties.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Main Features



• The blades are made of high-quality 9Cr18 anti-corrosion stainless steel.


• The bowl is manufactured by a professional foundry specializing in casting components. The structural design is also convenient for disassembly and cleaning.


• The clearance between the blades and the bowl is strictly produced in accordance with international standards.


• The entire machine is fabricated from SUS304 stainless steel, featuring fine workmanship, attractive appearance, compact and rational structure, simple operation, and reliable performance.


• Variable frequency speed control is available as an option.


Model ZB-20 ZB-40 ZB-80 ZB-125 ZB-200
Material SUS304 SUS304 SUS304 SUS304 SUS304
Volume 20 L 40 L 80 L 125 L 200 L
Capacity 10-15 kg/time 20-30 KG/time 45-50 KG/time 70-80 KG/time 100-140 KG/time
Total Power 2.55 kW 6.25 kW 22.23 kW 26.55 kW 58.5 kW
Knife Quantity 3 Pieces 3 Pieces 6 Pieces 6 Pieces 6 Pieces
Shaft Speed 1650/3300 r/min 1800/3600 r/min 126/1800/3600 r/min 126/1800/3600 r/min 200-3600 r/min
Bowl Speed 16 r/min 12 r/min 12 r/min 12 r/min 2-15 r/min
Dimension 770*650*980 mm 1240*920*1090 mm 1930*1150*1200 mm 2020*1300*1280 mm 2560*2450*2220 mm
Total Weight 220 KG 480 KG 920 KG 1130 KG 3600 KG
